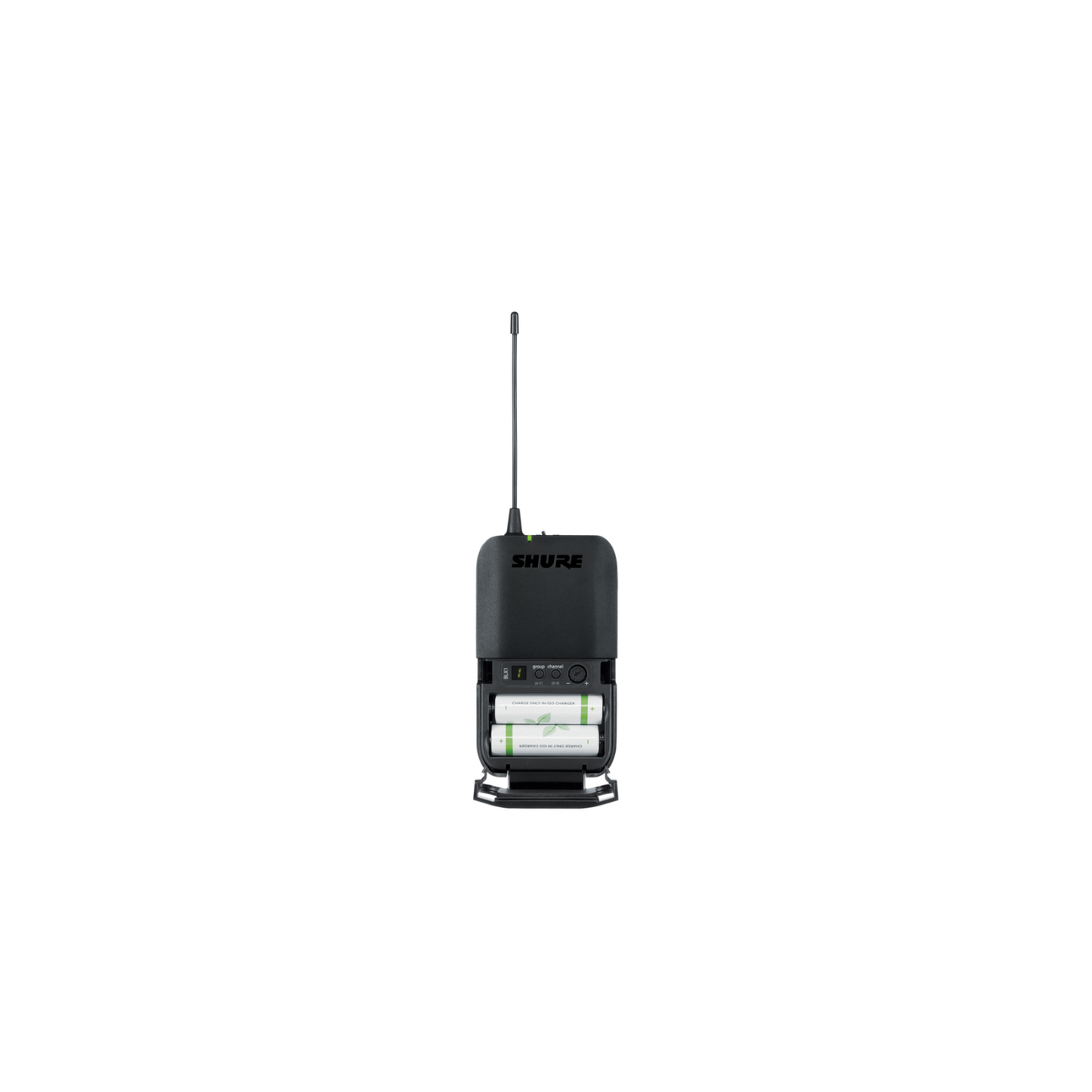

(Bestillingsvare 1-2 dagers levering) Shure BLX14E bodypack system PGA31 S8 (823-832MHz)
(Bestillingsvare 1-2 dagers levering) Shure BLX14E bodypack system PGA31 S8 (823-832MHz)
Vanlig pris
5.595,00 NOK
Vanlig pris
Salgspris
5.595,00 NOK
Enhetspris
per
System |
|
---|---|
Working Range | 91 m (300 ft) Line of Sight |
Note: Actual range depends on RF signal absorption, reflection and interference. | |
Audio Frequency Response | 50 to 15,000 Hz |
Note: Dependent on microphone type | |
Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone |
0.5%, typical |
Dynamic Range | 100 dB, A-weighted, typical |
Operating Temperature | -18°C (0°F) to 57°C (135°F) |
Note: Battery characteristics may limit this range. | |
Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output. |
BLX1 |
||
---|---|---|
Audio Input Level | max | -16 dBV maximum |
min (0 dB) | +10 dBV maximum | |
Gain Adjustment Range | 26 dB | |
Input Impedance | 1 MΩ | |
RF Transmitter Output | 10 mW, typical varies by region |
|
Dimensions | 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D | |
Weight | 2.6 oz. (75 g), without batteries | |
Housing | Molded ABS | |
Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline | |
Battery Life | up to 14 hours (alkaline) |
