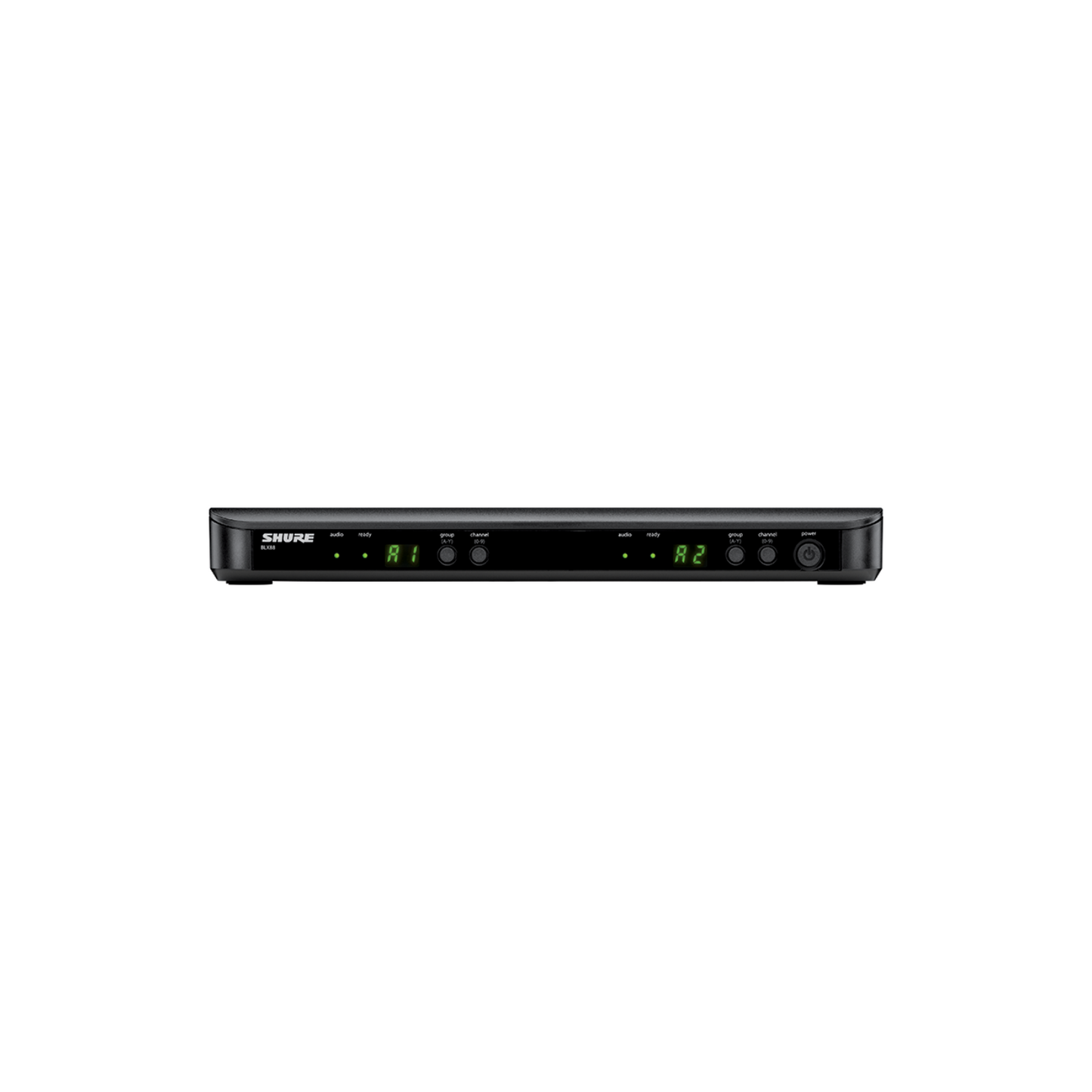

(Bestillingsvare 1-2 dagers levering) Shure BLX1288 combo med MX153 og SM58 (S 8) (823-832MHz)
(Bestillingsvare 1-2 dagers levering) Shure BLX1288 combo med MX153 og SM58 (S 8) (823-832MHz)
Vanlig pris
11.995,00 NOK
Vanlig pris
Salgspris
11.995,00 NOK
Enhetspris
per
Avgift inkludert.
Kunne ikke laste inn hentetilgjengelighet
System |
|
|---|---|
| Working Range | 91 m (300 ft) Line of Sight |
| Note: Actual range depends on RF signal absorption, reflection and interference. | |
| Audio Frequency Response | 50 to 15,000 Hz |
| Note: Dependent on microphone type | |
| Total Harmonic Distortion Ref. ±33 kHz deviation with 1 kHz tone |
0.5%, typical |
| Dynamic Range | 100 dB, A-weighted, typical |
| Operating Temperature | -18°C (0°F) to 57°C (135°F) |
| Note: Battery characteristics may limit this range. | |
| Polarity | Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 1/4-inch output. |
BLX88 |
||
|---|---|---|
| Output Impedance | XLR connector | 200 Ω |
| 6.35 mm (1/4") connector | 50 Ω | |
| Audio Output Level Ref. ±33 kHz deviation with 1 kHz tone |
XLR connector | –27 dBV (into 100 kΩ load) |
| 6.35 mm (1/4") connector | –13 dBV (into 100 kΩ load) | |
| RF Sensitivity | -105 dBm for 12 dB SINAD, typical | |
| Image Rejection | >50 dB, typical | |
| Dimensions | 1.50 in. X 12.13 in. X 3.98in. (38 mm X 308 mm X 101 mm) H x W x D | |
| Weight | 15.1 oz. (429 g) | |
| Housing | Molded ABS | |
| Power Requirements | 12–15 V DC @ 235 mA (BLX88, 320 mA), supplied by external power supply (tip positive) | |
BLX2 |
||
|---|---|---|
| Audio Input Level | 0dB | -20 dBV maximum |
| -10dB | -10 dBV maximum | |
| Gain Adjustment Range | 10 dB | |
| RF Transmitter Output | 10 mW, typical varies by region |
|
| Dimensions | 8.82 in. X 2.09 in. (224 mm X 53 mm) L x Dia. | |
| Weight | 7.7 oz. (218 g) without batteries | |
| Housing | Molded ABS | |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline | |
| Battery Life | up to 14 hours (alkaline) | |
BLX1 |
||
|---|---|---|
| Audio Input Level | max | -16 dBV maximum |
| min (0 dB) | +10 dBV maximum | |
| Gain Adjustment Range | 26 dB | |
| Input Impedance | 1 MΩ | |
| RF Transmitter Output | 10 mW, typical varies by region |
|
| Dimensions | 4.33 in. X 2.52 in. X 0.83 in. (110 mm X 64 mm X 21 mm) H x W x D | |
| Weight | 2.6 oz. (75 g), without batteries | |
| Housing | Molded ABS | |
| Power Requirements | 2 LR6 AA batteries, 1.5 V, alkaline | |
| Battery Life | up to 14 hours (alkaline) | |
