CARL MARTIN DC FACTORY

2500mA
100% Isolated and separated PSU.
Whether you are an international touring musician, or a weekend warrior, you should be very concerned with
the power you are supplying to your pedals.....and because you are, the Carl Martin "DC Factory" Power Supply
was designed just for you!

With the constant addition of very 'power hungry' digital pedals on the market, we designed the DC Factory
to address that very need. Highly powered and totally noise free, the DC Factory doesn't take up too much real
estate on your pedalboard and literally weighs about 2/3 of a kilogram (1.5 lbs).
To meet these goals, we had to forget about the standard toroidal transformers and design a fully digital switch
mode power supply!
The benefits go beyond ample power, the size and weight are reduced and most importantly,
there is no radiation of hum to Wah pedals or certain analog drive pedals.

Power supply set up

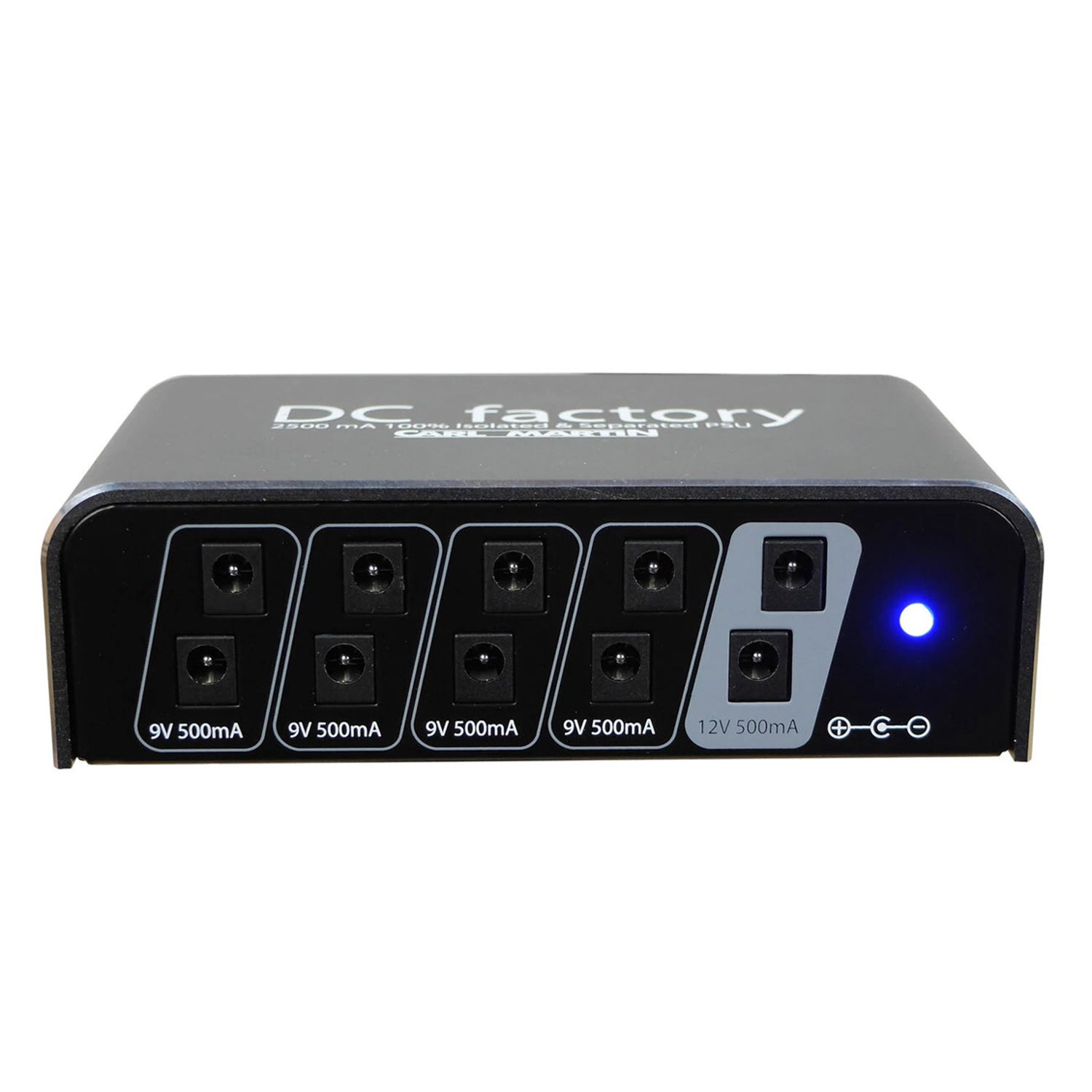

The DC Factory can power up to 5 digital pedals when you plug one of each into the
five separated and isolated
digital power supplies, and also 5 analogue effects when
you plug them into the second jack in each of the 5 power
supplies, as long as the
power demand for the two pedals in each PSU does not exceed 500mA.
